WIFI I/O Module
Wi-Fi I/O Module support a wide range of of field signals including current, voltage, thermistor, thermocouple, RTD, and strain gauge with many protocols and interfaces.

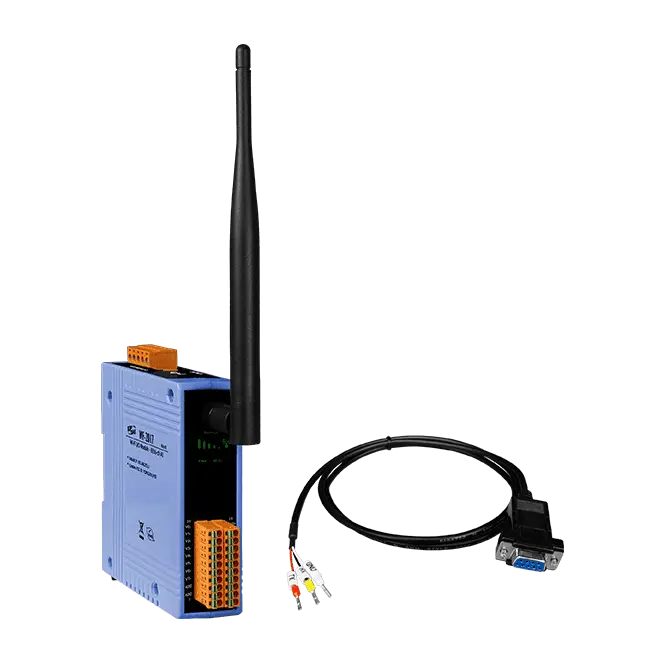

WF-2017
Wi-Fi I/O Module with 8-ch/16-ch AI
The WF-2017 is a Wi-Fi interface and 8-channel Differential/16-channel
Single-Ended analog input module. The analog input range is software
selectable and supports +/-10V, +/-5V, +/-1V, +/-500 mV, +/-150 mV, and
+/-20 mA. Differential and Single-ended mode is selected by jumpers. In
addition, the WF-2017 has WLAN connection complies with the
IEEE802.11b/g standards. With the popularity of 802.11 network
infrastructure, the WF-2017 makes an easy way to incorporate wireless
connectivity into monitoring and control systems. The WF-2017 also supports Modbus/TCP and UDP protocols and the network encryption
configuration, which makes perfect integration to SCADA software and
offer easy and safe access for users from anytime and anywhere.
-
8-channel Differential Analog Input
-
16-channel Single-ended Analog Input
-
Compatible with IEEE 802.11b/g standards
-
Support WEP, WPA and WPA2 wireless encryption
-
Support Modbus/TCP and UDP protocols
-
Support DHCP network configuration
-
Wide Operating Temperature Range
-
4 kV ESD Protection
- Built-in Watchdog
Application:
WF-2026
Wi-Fi I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO
The WF-2026 is a multifunction module with Wi-Fi interface that includes
5 analog input channels, 2 analog output channels, 2 digital input
channels and 3 digital output channels. It provides a programmable input
range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10
V, +/-20 mA or 0 ~ +20 mA) and output range on all analog output (12-bit
at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA). Each analog input and
output channel can be configured for an individual range and provides a
high overvoltage protection of 240 Vrms. Analog Input and output can be
jumper selectable as either voltage or current. With the popularity of
802.11 network infrastructure, the WF-2026 makes an easy way to
incorporate wireless connectivity into monitoring and control systems.
The WF-2026 also supports Modbus/TCP and UDP protocols and the network
encryption configuration, which makes perfect integration to SCADA
software and offer easy and safe access for users from anytime and
anywhere.
-
Multifunction (5-AI, 2-AO, 2-DI and 3-DO)
-
Individual Channel Configuration
- Jumper Selectable Voltage or Current Input/Output
-
Support Modbus/TCP and UDP protocols
-
Support DHCP network configuration
-
Overload and Short Circuit Protection for Digital Output
-
4 kV ESD Protection
- Built-in Watchdog

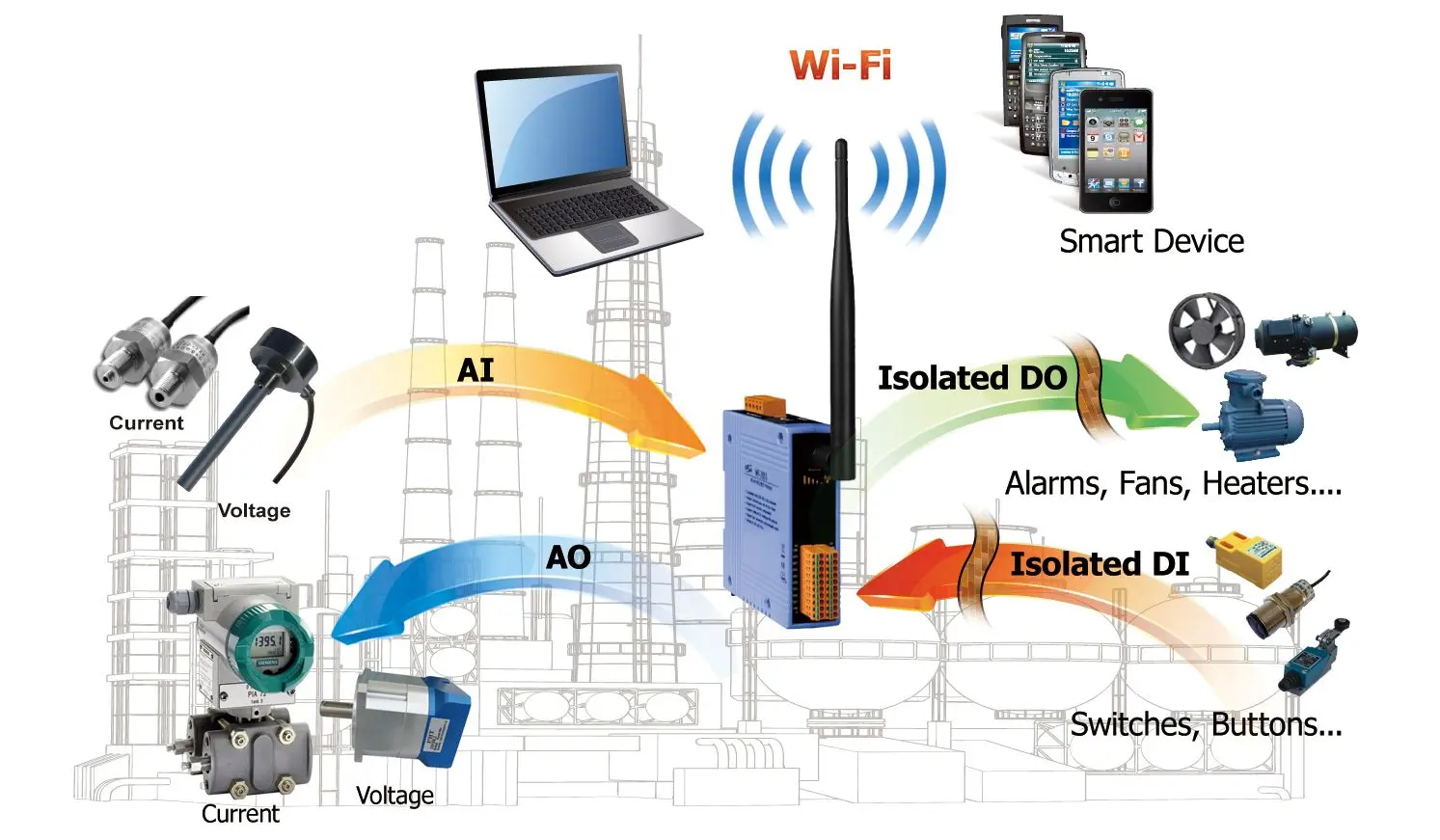

Application:

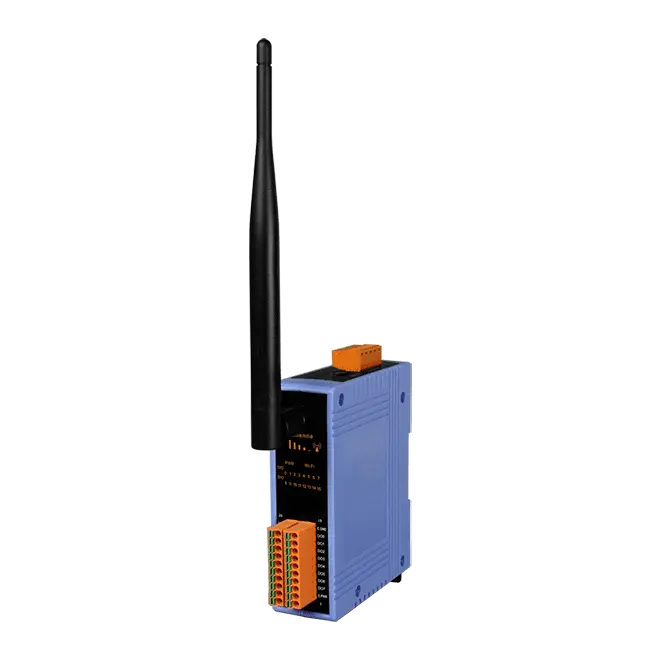

WF-2042
Wi-Fi I/O Module with Isolated 16-ch (Sink, NPN) DO
The WF-2042 is a 16-channel isolated digital output module, and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2042 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
- Support sink type digital output
- Compatible with IEEE 802.11b/g standards
- Support Infrastructure and Ad hoc modes
- Support Modbus/TCP and UDP protocols
- Support DHCP network configuration
- Support pair connection mode
- Support DO power on value & safe value mechanism
- Built-in Watchdog
- Wide Operating Temperature Range
- 4kV ESD Protection

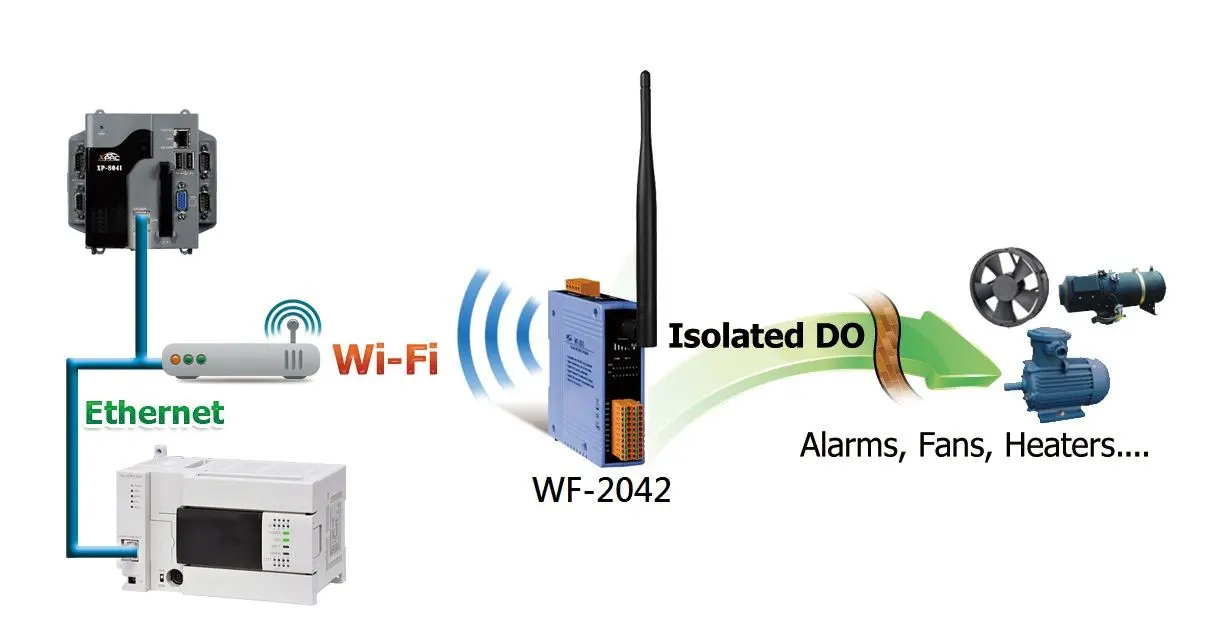

Application:
WF-2060
Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay
The WF-2060, is a 6-channel isolated digital input with 32-bit counters, 6-channel power relay output module. WF-2060 in WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2060 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2060 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
- Support Relay type digital outputs
- Support sink/source type digital inputs
- Compatible with IEEE 802.11b/g standards
- Support infrastructure and ad hoc modes for wireless networks
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support pair connection mode
- Support DO power on value & safe value Mechanism
- Built-in Watchdog

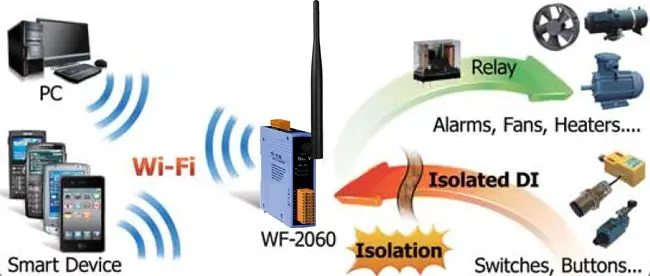

Application:
MDC-211WF
Wi-Fi Modbus Data Concentrator
MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.
- Compatible with IEEE 802.11 a/b/g/n standards
- Support Infrastructure and Limit-AP mode
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Support Ethernet, RS-232/485 and Wi-Fi interfaces
- Support Web-based UI Operations
- Support the Modbus TCP/RTU protocol
- Support 240 Modbus Polling Commands
- Supports 9600 Modbus Registers for DI/DO/AI/AO

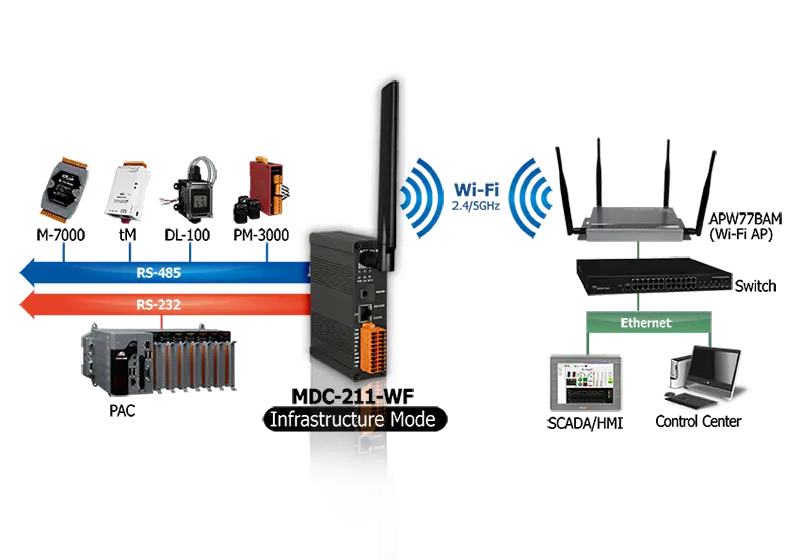

Application:
