HART Gateways

I-7570 / 7567 / 7547

Serial / USB / Ethernet - to HART converter

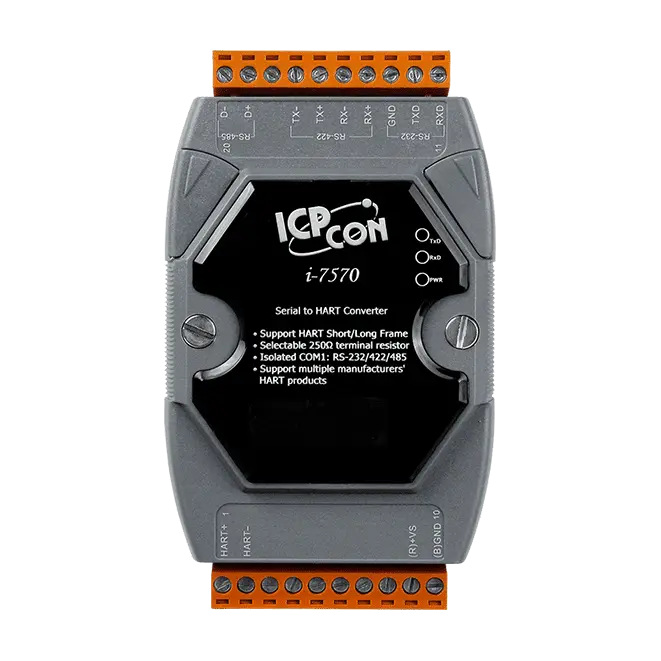

I-7570 is a Serial / USB to HART converter and can be configured as a HART master with HC_Tool utility or a HART slave with HDS utility.

As a HART master, It allows users to access the HART slave by using RS-232 / RS-422 / RS-485. These HART slave devices may be a transmitter, actuator, current output device and so forth. In addition, by using the I-7570 utility tool, users can configure module and test HART communication easily and quickly.

As a HART Slave, It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

• Support HART Short / Long frame
• Support HART Burst mode
• Support point-to-point or multi-drop HART mode
• Support connecting up to 15 HART slave devices
• Allow two HART masters
• Provide utility tool for module configuration and HART communication
• 4KV ESD Protection
• Built-in Watchdog
• Selectable 250Ω load resistor
• Support HART OPC Server provided by HART Foundation.

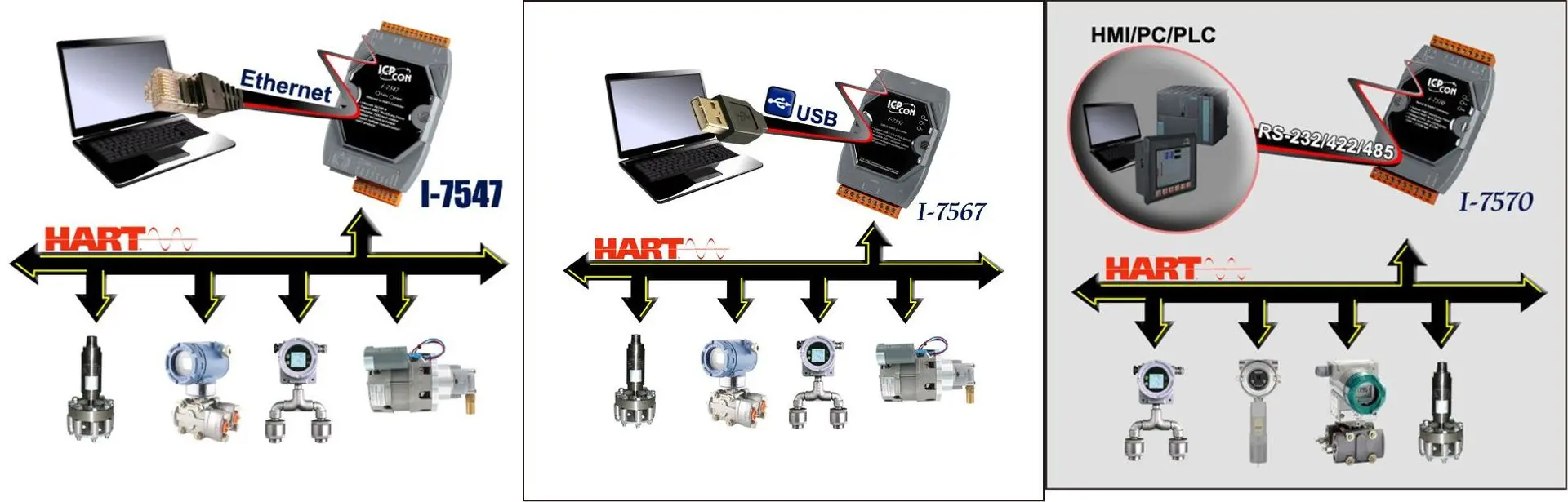

  Application:​

HRT-710

Modbus RTU/ASCII to HART Gateway

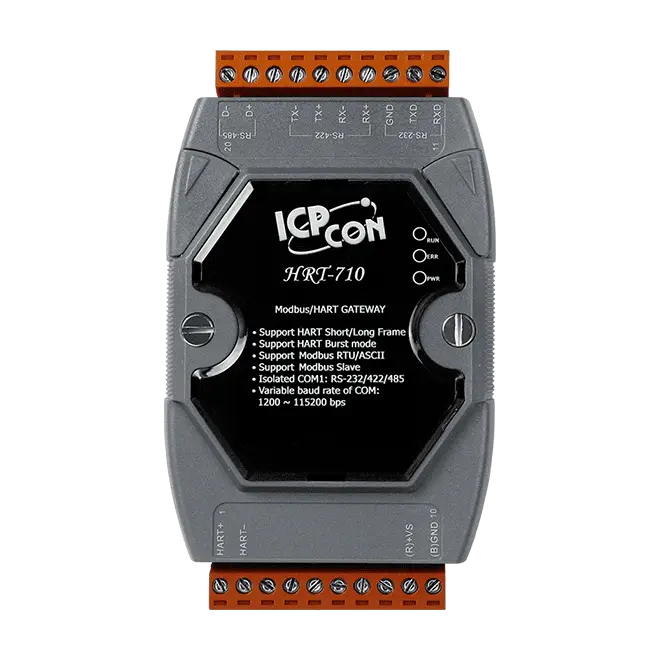

The HRT-710 Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices. These HART devices may be a transmitter, an actuator and so forth. In addition, we also provide the software utility, HG_Tool, for module configuration and HART device diagnosis. By using these modules, users can integrate their HART devices into Modbus network easily and quickly.

HRT-710, a HART master to Modbus slave gateway, is applied to integrate the information from these HART flow meters into the customer's HMI system. Through the HRT-710, all of the HART flow meters will be regarded as Modbus slave devices and the HMI system can use the built-in Modbus RTU communication to access these HART flow meters easily.

• Support HART Short/Long frame
• Support HART Burst mode
• Allow two HART Masters
• Working in point-to-point or multi-drop HART mode
• Connecting up to 15 HART modules
• Support Modbus RTU and ASCII format
• Support Modbus Slave mode
• Support firmware update via Com Port
• Support on-line replacement of HART devices
• Support acquire Long Frame Address automatically
• Provide LED indicators
• Built-in Watchdog
• DIN Rail or Wall Mounting

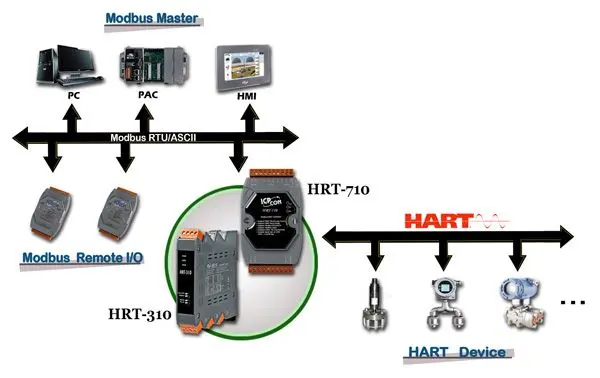

  Application:​

HRT-711

Modbus TCP/UDP to HART Gateway

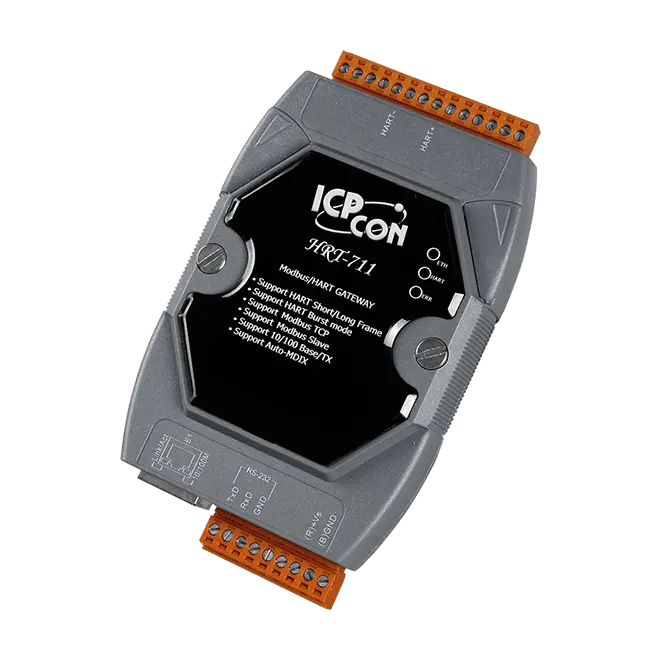

The HRT-711 Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices. These HART devices may be a transmitter, an actuator and so forth. In addition, we also provide the utility software for users to configure the HRT-711. By using this module, users can integrate their HART devices into Modbus network easily.

• Support HART Short/Long frame
• Support HART Burst mode
• Allow two HART Masters
• Working in point-to-point or multi-drop HART mode
• Connecting up to 15 HART modules
• Support Modbus TCP/UDP server
• Support Modbus Slave mode
• Support firmware update via Com Port
• Support on-line replacement of HART devices
• Support acquire Long Frame Address automatically
• Provide LED indicators
• Built-in Watchdog
• Mountable on DIN Rail

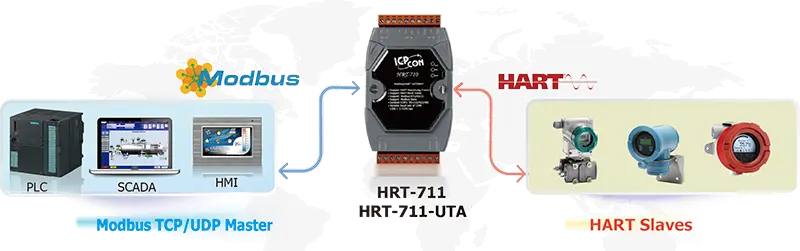

  Application:​
