Digital Module (RS 485)
Remote I/O Modules support a wide range of of field signals including current, voltage, thermistor, thermocouple, RTD, and strain gauge with many protocols and interfaces.

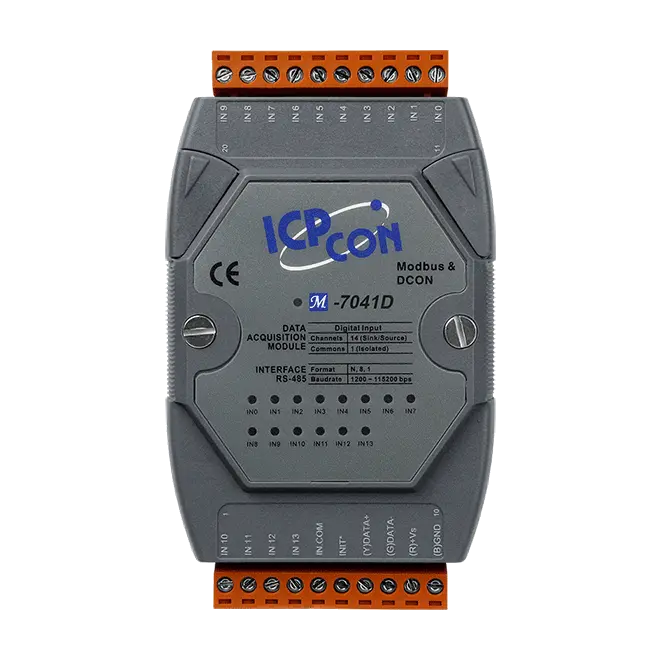

M-7041D-G
14-ch Isolated (Wet, 4~30 VDC) DI Module with LED Display
The M-7041(D)/M-7041P(D) provides 14 channels for digital input, each of
which features photocoupler isolation. Either sink- or source-type
inputs can be selected via wire connections, and all channels can be
used as 16-bit counters. The M-7041D/M-7041PD includes 14 LED indicators
for channel status monitoring The M-7041(D)/M-7041P(D) supports Modbus RTU and DCON protocols, which can be configured via software.
- Sink- or Source-type Digital Input
- Photocoupler Isolation
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Application:
Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

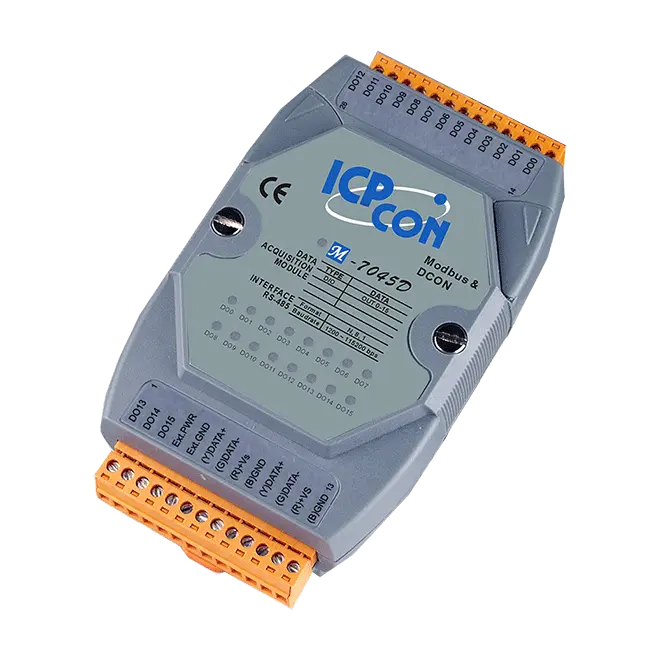

M-7045D-G
16-ch Isolated DO Module with LED Display
The M-7045 series offers 16 digital output channels, each of which
features photocoupler isolation. The M-7045 supports source-type output,
while The M-7045-NPN supports sink-type output, and both are equipped
with short circuit protection. The M-7045D/M-7045D-NPN provides 16 LED
indicators for channel status monitoring. . The M-7045 supports Modbus RTU and DCON protocols, which can
be configured via software, and only provides differential analog input
channels.
- Source-type Digital Output with Overload Protection
- Configurable Power-on Value and Safe Value Settings
- Short Circuit Protection
- Overload and Over-voltage Protection
- Built-in Dual Watchdog
Application:
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
M-7046D-G
15-ch Isolated (Wet, 3.5~50 VDC) DI Module with LED Display
The M-7046/M-7046D is a 15-channel digital input module. Each channel
features photocoupler isolation and can be used as a 16-bit counter. In
addition, the digital input type can be selected as either sink or
source via wire connections. The M-7046D module includes 15 LED
indicators for channel status monitoring. The M-7046(D) provides 8 kV
ESD protection and 5000 VDC intra-module isolation to enhance noise
protection capabilities in industrial environments, making the module an
ideal solution for digital input applications.
- Sink- or Source-type Digital Input
- Photocoupler Isolation
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
Application:

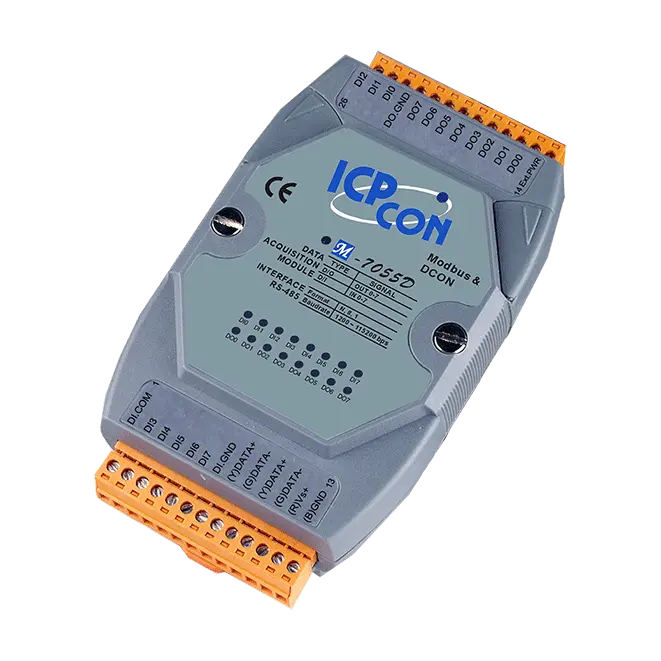

M-7055D-G
8-ch Isolated (Dry, Wet) DI and 8-ch Isolated DO Module with LED Display
The M-7055/M-7055D offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink- or source-type inputs can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The M-7055(D) supports source-type output with short circuit protection. The M-7055D has 16 LED indicators for channel status monitoring. The M-7055(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are standard, and all hardware specifications are the same as the I-7055(D).
- Source-type Digital Output with Overload Protection
- Digital Input Channels Can be Used as 16-bit Counters
- Short Circuit Protection
- Configurable Power-on Value and Safe Value Settings
Application:
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
M-7018D-G
8-ch Thermocouple Input Module
The M-7018/M-7018R is an 8-channel analog input module that supports current, voltage, and thermocouple input. The M-7018R is an upgraded version of the M-7018 that includes an extremely high-quality protection mechanism where the overvoltage protection can be as high as 240 Vrms. The M-7018R is more suitable for critically harsh environments. The M-7018/M-7018R supports Modbus RTU and DCON protocols
- 1 Analog Input
- Current, Voltage, and Thermocouple Inputs
- Open Thermocouple Detection
- High Resolution: 16-bit
- 50 Hz Event Counter for Digital Input
- High/Low Alarm for Digital Output
- Built-in Dual Watchdog
Application:
Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.
I-7033D-G
3-ch RTD Input Module with LED Display
The I-7033 is a 3-channel RTD Input module that is used for measuring
temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000
type sensors. The module allows 2/3/4-wire RTD connections and features
open wire detection. In addition, the I-7033 also includes 3000 VDC
intra-module isolation, and supports lead resistance elimination for
3/4-wire connections.
- 3 RTD Inputs
- Lead Resistance Elimination for 3/4-wire Connections
- Open Wire Detection
- Built-in Dual Watchdog
Application:
Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

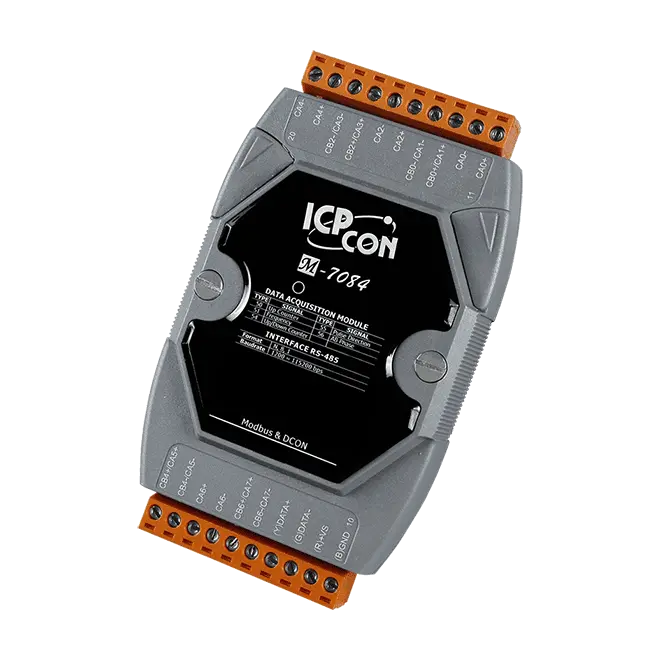

M-7084-G
4/8-ch Counter/Frequency/Encoder Input Module
The M-7084 is a 32-bit high-speed Counter/Frequency/Encoder input module that offers a variety of mode options, including "Up Counter”, "Frequency Input", "Up/Down Counter", "Direct/Pulse Counter" and "A/B Phase Counter" modes. The mode combinations can be individually set for all 8 channels, where some channels can be set to “Up Counter” mode and other channels can be simultaneously set to “Frequency Input”, "Up/ Down Counter" or “Encoder input” mode. The built-in digital filter can filter out noise where the high/ low pulse width is smaller than the minimum high/low width of the digital filter. The M-7084 provides a virtual battery backup function in counter mode.
- 8 Up Counter/Frequency or 4 Encoder Inputs
- Programmable Digital Filter
- Supports 32-bit Counter
- Individual Channel Configuration
- Built-in Virtual Battery Backup to Preserve Counter Values
- Preset Values for Counter Input
Counter Measurement, Frequency Measurement and Encoder Motion Control.
