Ethernet Analog Module

ET-7017

Ethernet I/O Module with 8-ch AI, 4-ch DO

The ET-7017 is a module with 8-channel differential analog inputs and 4-channel digital outputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA) and digital output can be set alarm output with Short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of the corresponding jumper. The sampling rate of ET-7017 is changeable; there are fast mode and normal mode for your consideration. ET-7017 also has a qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• I/O Pair Connection

Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

  Application:​

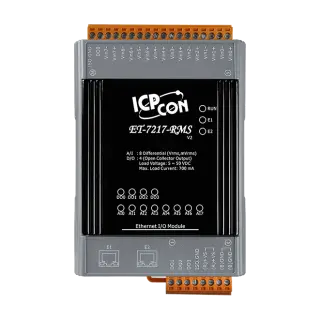

ET-7217

 Ethernet I/O Module with 2-port Ethernet Switch, 8-ch AI, 4-ch DO

 The ET-7217 is a module with 8-channel differential analog inputs and 4-channel digital ouputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA) and digital output can be set alarm output with Short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of corresponding jumper. The sampling rate of ET-7217 is changeable; there are fast mode and normal mode for your consideration.

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security

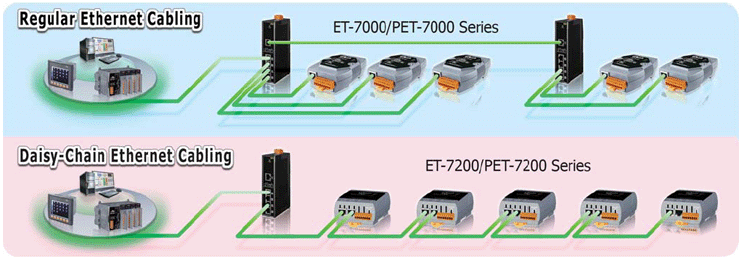

• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• I/O Pair Connection

Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

  Application:​

ET-7002

Ethernet I/O Module with 3-ch AI, 6-ch DI, 3-ch Power Relay

The ET-7002 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of the corresponding jumper. The ET-7002 is fully RoHS compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• I/O Pair Connection

  Application:​

Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

ET-7024

 Ethernet I/O Module with 2-port Ethernet Switch, 4-ch AI, 4-ch AO, 4-ch DI

The ET-7204 is a multi-function module with 4-channel analog inputs, 4-channel analog outputs, 4-channel digital inputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• I/O Pair Connection

  Application:​

Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

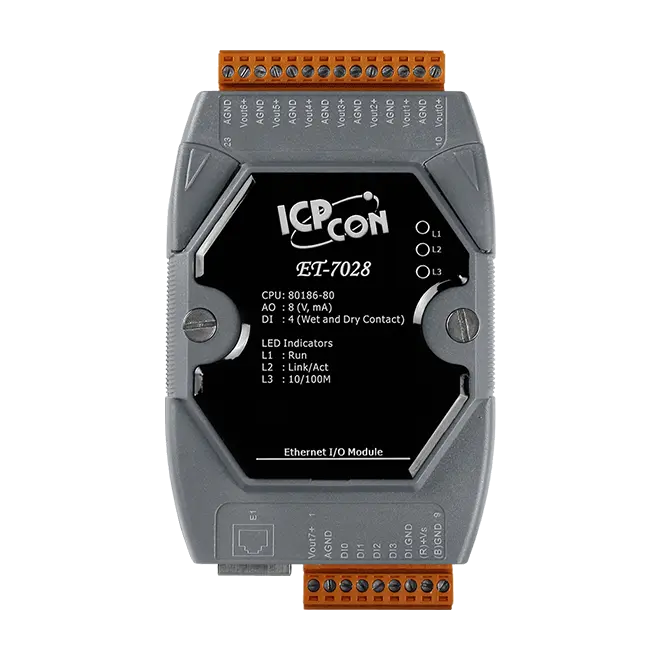

ET-7028

 Ethernet I/O Module with 8-ch AO

The ET-7028 is aN 8 channels analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA, and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of the corresponding jumper. The ET-7028 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• Dual Watchdog
• I/O Pair Connection

  Application:​

Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.
