IIOT Controllers

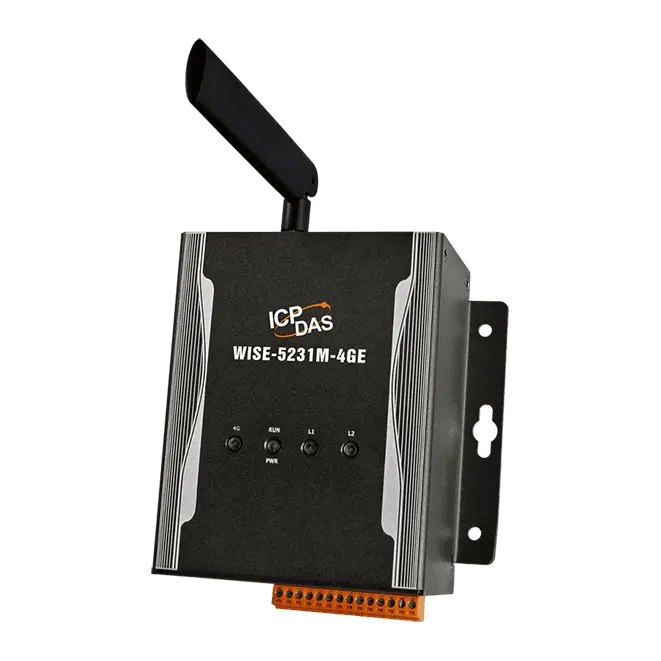

WISE-5231-4GE

IIoT Edge Controller

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required.Built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.  WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform

• Runs on browsers, no extra software tool is required
• No more programming, Web pages provided for control logic editing
• Support DCON or Modbus RTU Slave devices (Up to 32)
• SSL/TLS Email sending function supported
• Timer and Schedule functions supported
• Data logger and data files send back function supported
• Active I/O sending function for real-time data transfer
• CGI Command sending and receiving function supported ip camera & Network devices
• Support 4G/3G wireless data communication

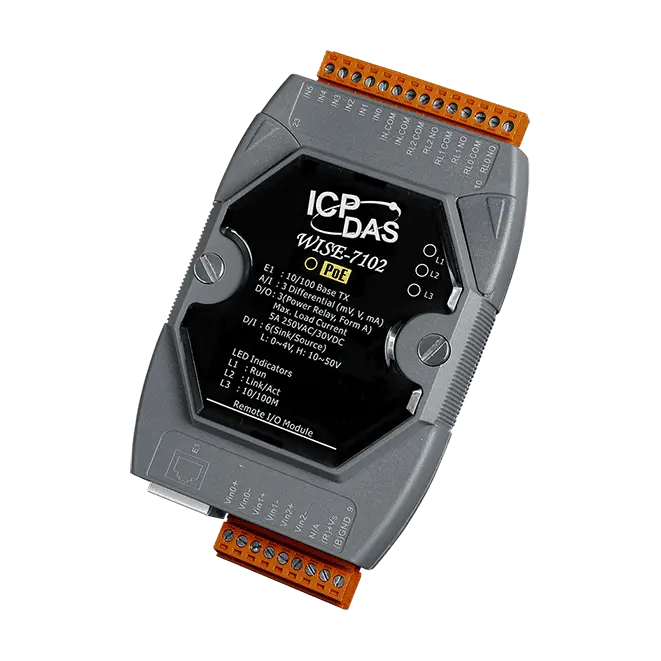

WISE-7102

Intelligent I/O Module with 3-ch AI, 6-ch DI, 3-ch Power Relay

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7102 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 3-channels analog inputs, 6-channels digital inputs and 3-channels Power Relay outputs. Each analog input channel provides 240 Vrms high over voltage protection.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (AI: 3-channels; DO: 3-channels Power Relay; DI: 6-channels).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

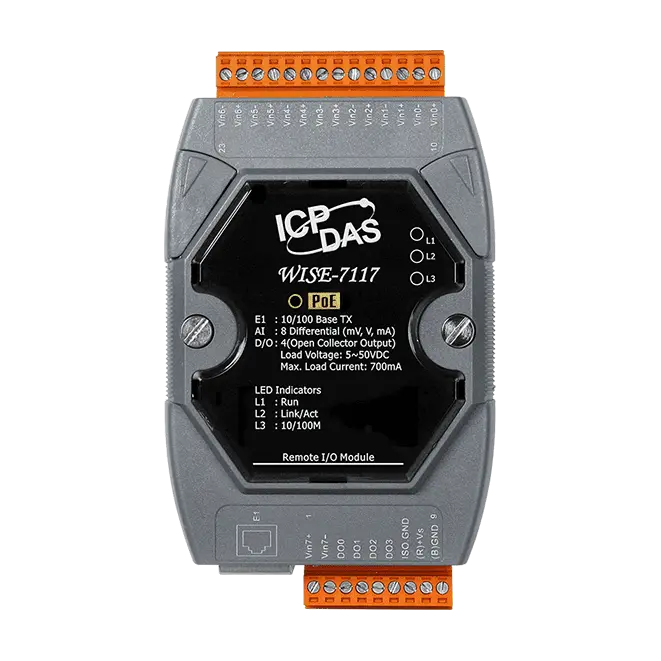

WISE-7117

Intelligent I/O Module with 8-ch AI, 4-ch DO

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7117 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-bit, 8-channel differential analog inputs and 4-channel digital ouputs. Each analog channel is allowed to configure an individual range and has 240Vrms high over voltage protection. Jumper selectable for voltage or current input. .

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (AI: 8-channels; DO: 4-channels).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

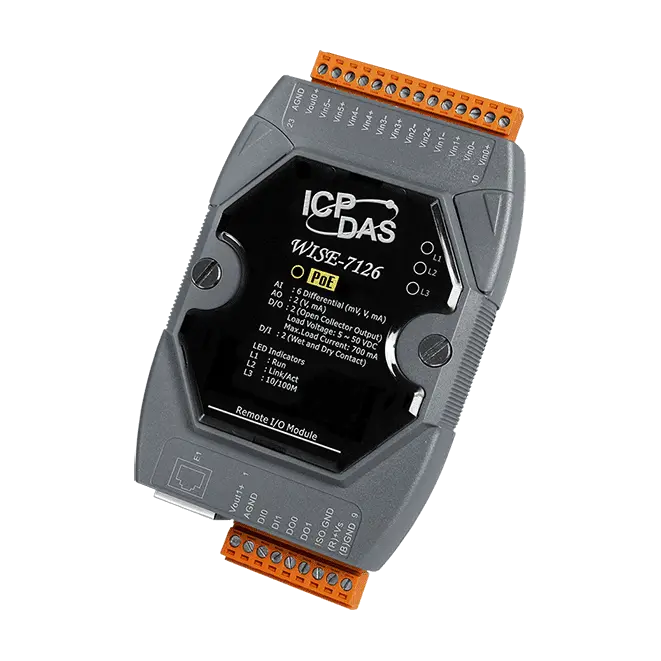

WISE-7126

Intelligent I/O Module with 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7126 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. Each analog input channel provides 240 Vrms high over voltage protection.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (AI: 6-channels; AO: 2-channels; DI: 2-channels; DO: 2-channels).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

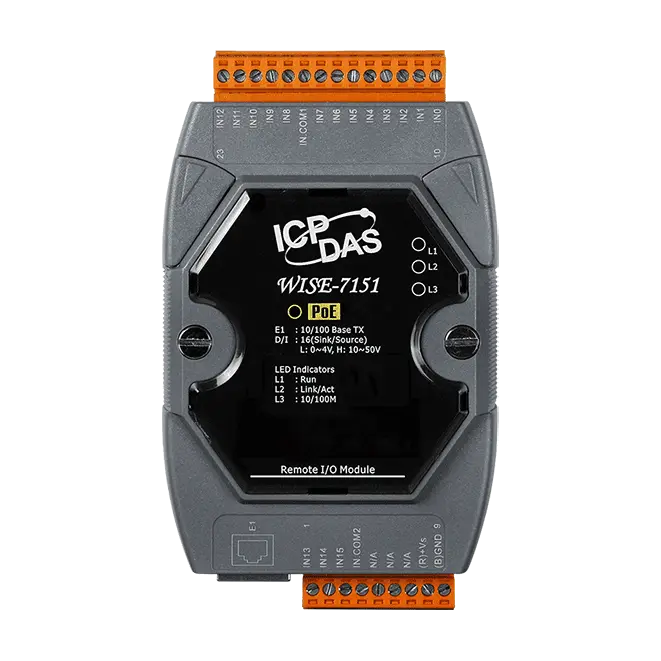

WISE-7151

Intelligent I/O Module with 16-ch DI

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This module WISE-7151 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-channel isolated wet contact digital inputs. Each digital input channel supports counter input.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (DI: 16-channels).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

WISE-7160

Intelligent I/O Module with 6-ch DI, 6-ch Power Relay

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This module WISE-7160 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6 power relay outputs and 6 isolated wet contact digital inputs. Each power relay supports contact rating as 5 A @ 250 VAC or 5 A @ 30 VDC and each digital input channel supports counter input.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (DI: 6-channels; DO: 6-channels Power Relay).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

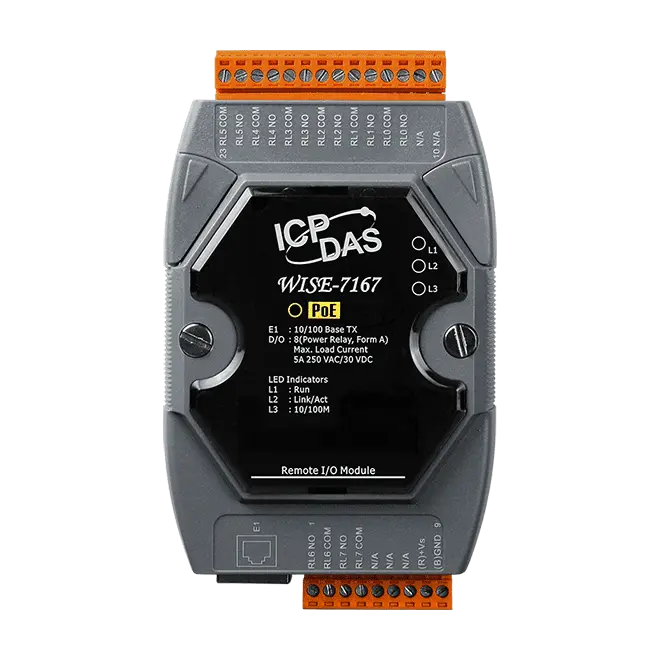

WISE-7167

Intelligent I/O Module with 8-ch Power Relay

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This module WISE-7167 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 8-channel power relay outputs. Each power relay supports contact rating as 5 A @ 250 VAC or 5 A @ 30 VDC.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (DO: 8-channels Power Relay).
• Support I/O channel monitoring/control, Timer operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).

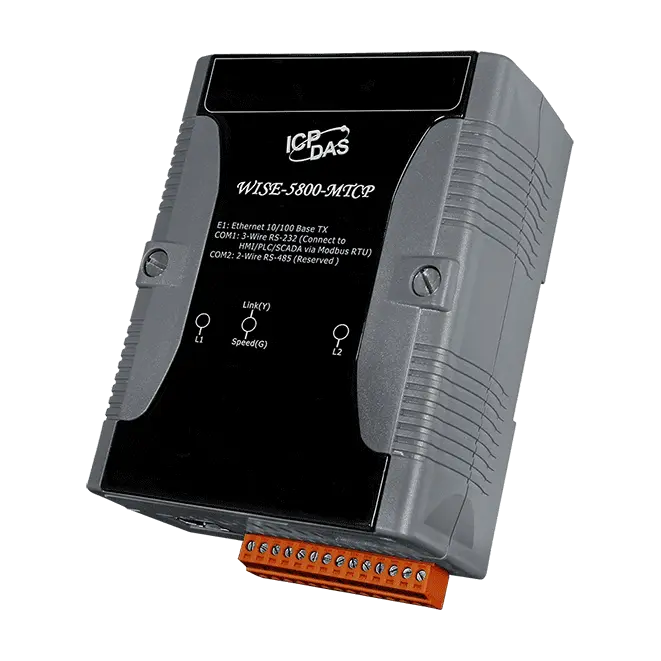

WISE-5800-MTCP

Intelligent User-defined I/O Module for Modbus TCP Devices

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

  WISE-5800-MTCP supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D and D/A according to the XW-Board. In addition, WISE-5800-MTCP also supports Modbus TCP slave devices. Based on the connection ability with Modbus TCP slave devices, WISE-5800-MTCP can provide user more flexibility in application field. WISE-5800-MTCP supports Modbus TCP/RTU protocol . In addition, WISE-5800-MTCP provides data logger function with microSD card, it can record I/O channel value by event trigger or regular time period. The data files can be sent back by Email or FTP. All setting can be completed through browser.

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Support XW-Board.
• Support Modbus TCP Slave Devices(Up to 7).
• Support I/O channel monitoring/control, Timer, Schedule, Recipe operations.
• Support non-SSL Email sending, CGI Command sending operations.
• Data logger and data files send back function supported.
• Modbus TCP/RTU Protocol for SCADA Software Seamless Integration.
