Ethernet Digital Module
Remote
I/O Modules support a wide range of of field signals including current,
voltage, thermistor, thermocouple, RTD, and strain gauge with
many protocols and interfaces.

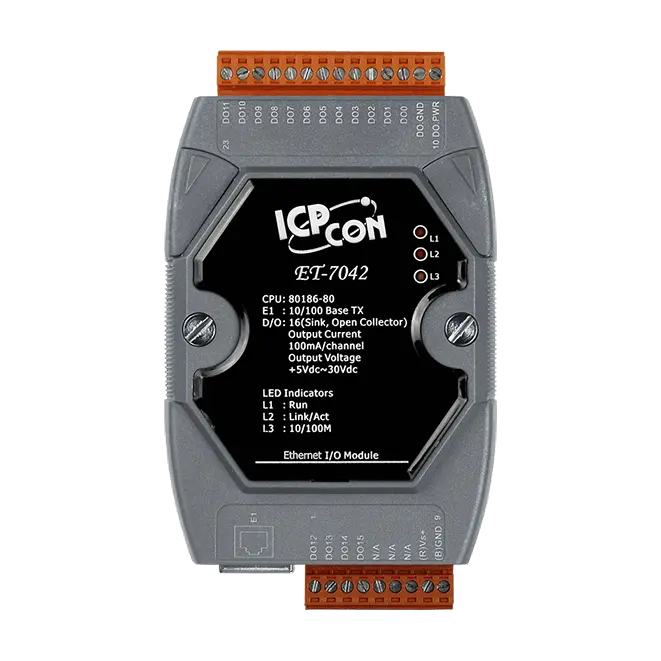

ET-7042
Ethernet I/O Module with 16-ch DO
The ET-7042 provides 16 sink-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn't have channel-to-channel isolation. The power-on value and safe value of the digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7042 to the RM series relay module to switch inductive loads.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

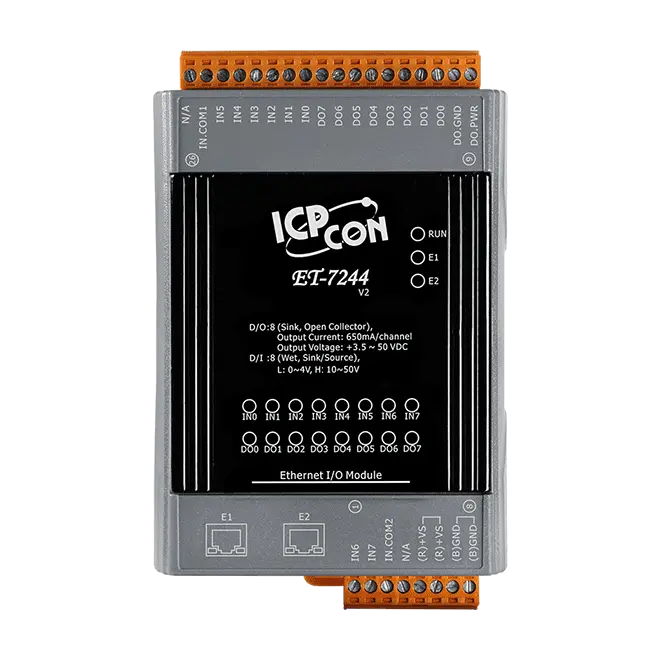

ET-7244
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch DI, 8-ch DO
The ET-7244 provides 8 wet contact digital input channels and 8 sink-type digital output channels. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 300 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- I/O Pair Connection
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

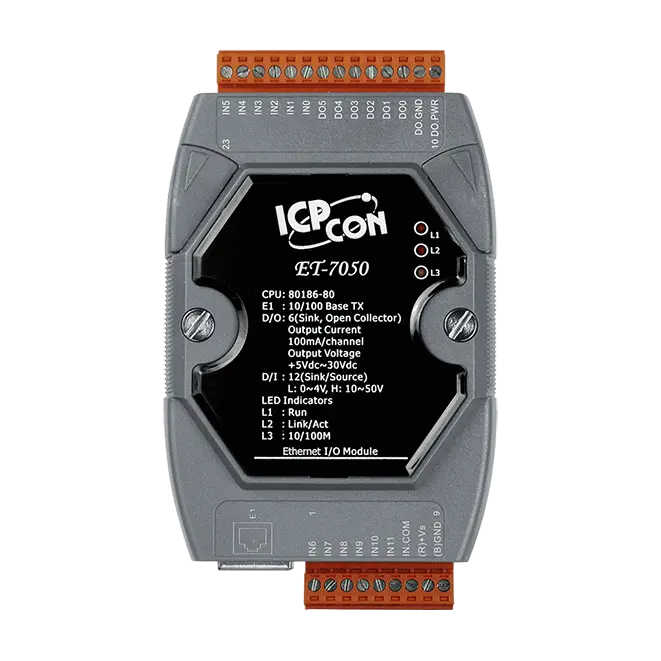

ET-7050
Ethernet I/O Module with 12-ch DI, 6-ch DO
The ET-7000/ET-7200 series provides full networking capabilities, and a variety of I/O functions, together with web-based Ethernet I/O monitoring and control modules, meaning that the modules can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network. This ensures that the ET-7000/ET-7200 series provides integration with HMI, SCADA, PLC, and other industrial control software systems. ET-7050 provides 6 sink-type digital output channels and 12 wet contact digital input channels, each of which is able to be used as a 32-bit counter.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

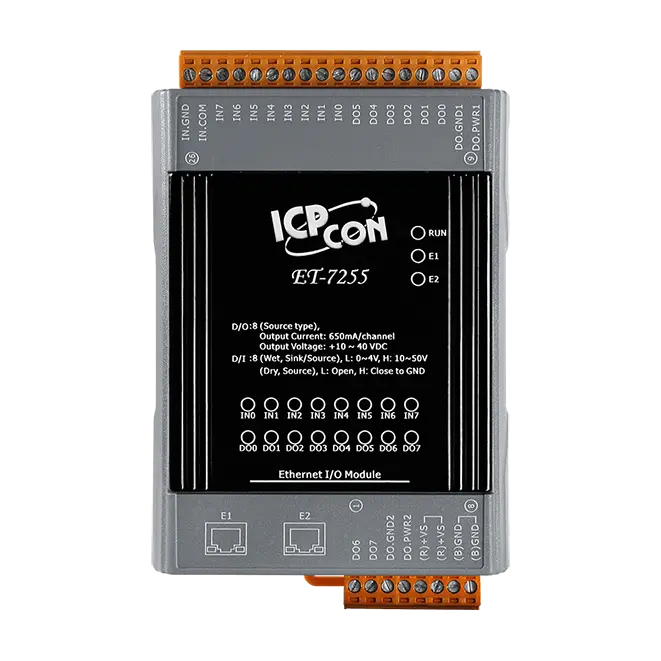

ET-7255
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch DI, 8-ch DO
The ET-7255 provides 8 Dry/wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn’t provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter and each output channel can drive 650 mA load. The power-on value and safe value of digital output channel are programmable. It can safely be used in applications where hazardous voltages are present.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- I/O Pair Connection
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.

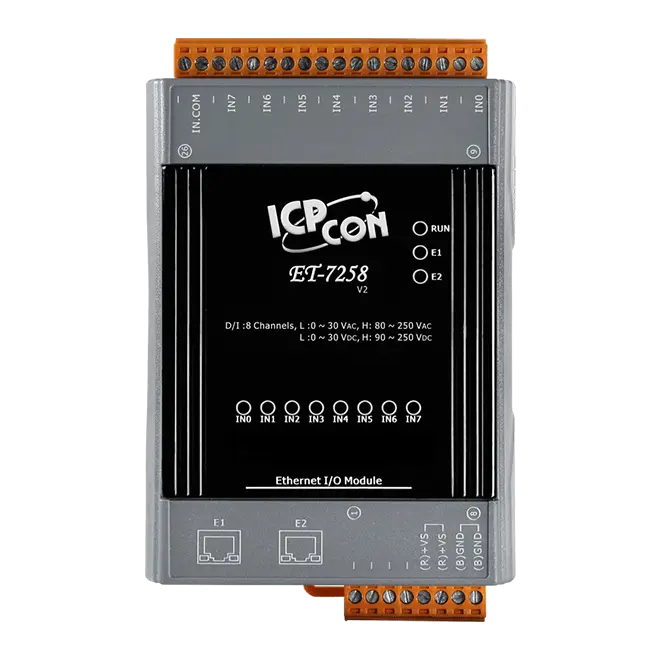

ET-7258
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch AC/DC DI
The ET-7258 provides 8 AC/DC digital input channels. Each input channel
can be used as a 32-bit counter. It features optical isolation for 2500
VDC of transient overvoltage protection but doesn’t provide
channel-to-channel isolation. It can safely be used in applications
where hazardous voltages are present.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.
ET-7060
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch AC/DC DI
The ET-7060 provides 6 wet contact digital input channels and 6 form A
electromechanical relays. It features optical isolation for 3000 VDC of
transient overvoltage protection and doesn't have channel-to-channel
isolation. Each input channel can be used as a 32-bit counter. The
power-on value and safe value of the relay are programmable.
.
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- I/O Pair Connection
- Dual Watchdog
Application:
Factory automation, Machine automation, Testing equipment, Building automation, Solar energy system, Pollution monitoring system & Remote Diagnosis.
