M-7017-G

8-ch AI Module

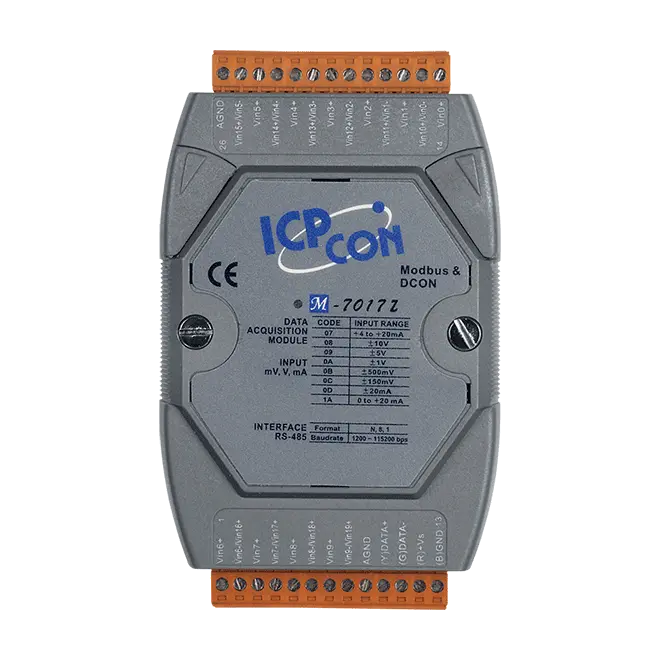

 The M-7017 is an analog input module that provides 8 differential input channels. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as ±120 VDC overvoltage protection. The M-7017 supports Modbus RTU and DCON protocols, which can be configured via software, and only provides differential analog input channels. Other hardware specifications are the same as the I-7017. .

• 8 Differential Analog Inputs
• Voltage and Current Inputs
• High Resolution: 16-bit
• Open Wire Detection for 4 ~ 20 mA
• Built-in Dual Watchdog

  Application:​

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

I-7014D

1-ch Transmitter Input Module with LED Display

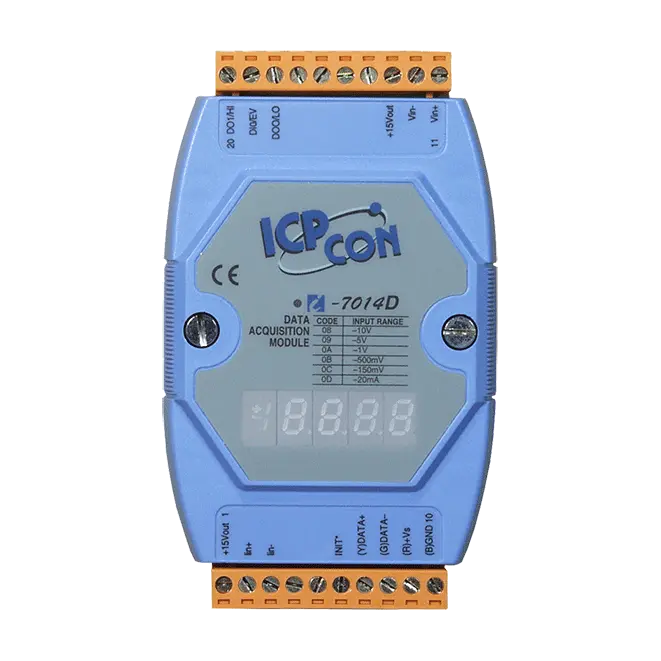

  The I-7014 is an 1-channel Transmitter Input module that provides a +15 VDC isolated loop power supply for transmitter input, and is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7014 also features 3000 VDC intra-module isolation.

• Current, Voltage, and Transmitter Inputs
• High Resolution: 16-bit
• 50 Hz Event Counter for Digital Input
• High/Low Alarm for Digital Output
• Built-in Dual Watchdog

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

  Application:​

I-7016PD

Strain Gauge Input Module

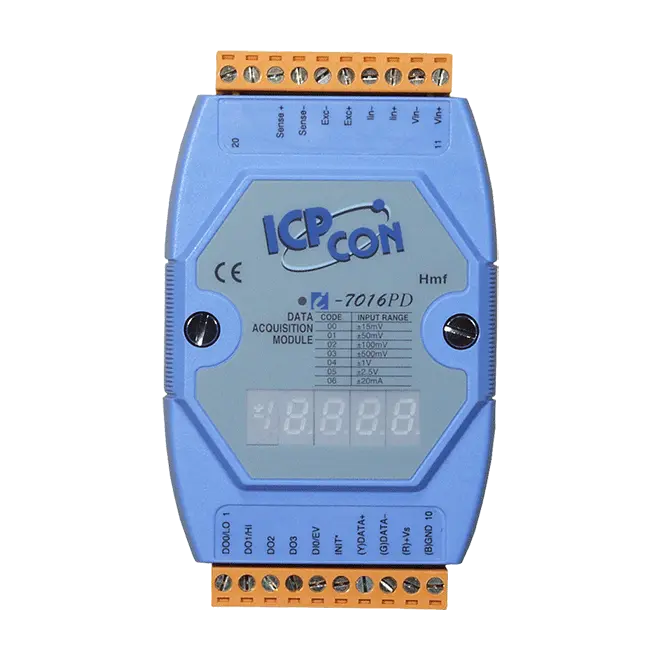

The I-7016 series modules are designed not only to process data from weighing sensors or strain gauges but also to provide linear mapping functionality. By using user-defined mapping tables, the measured data can be directly converted into weight. This series supports full-bridge strain gauges and offers the following I/O features:

• Long-distance Strain Gauge Measurement
• High Resolution: 16-bit
• Excitation Voltage Output : 0 ~ +10 V
• 50 Hz Event Counter for Digital Input
• High/Low Alarm for Digital Output
• Built-in Dual Watchdog

  Application:​

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

M-7018D-G

8-ch Thermocouple Input Module

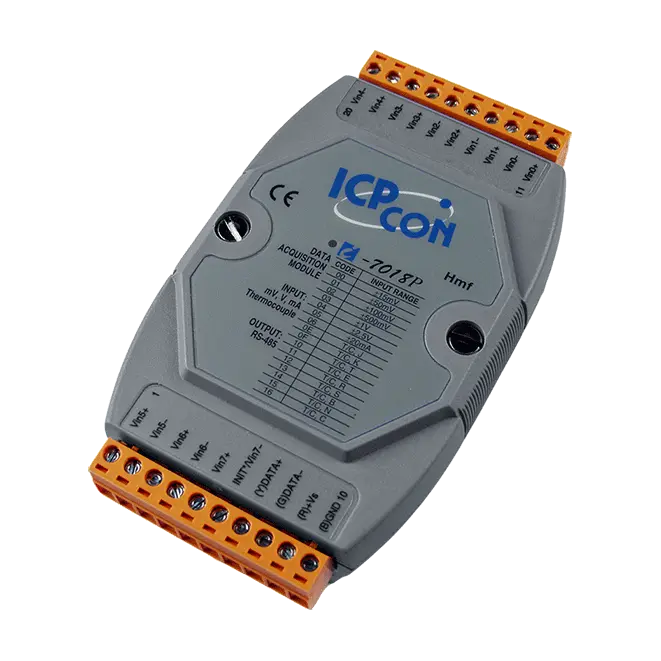

The M-7018/M-7018R is an 8-channel analog input module that supports current, voltage, and thermocouple input. The M-7018R is an upgraded version of the M-7018 that includes an extremely high-quality protection mechanism where the overvoltage protection can be as high as 240 Vrms. The M-7018R is more suitable for critically harsh environments. The M-7018/M-7018R supports Modbus RTU and DCON protocols

• 1 Analog Input
• Current, Voltage, and Thermocouple Inputs
• Open Thermocouple Detection
• High Resolution: 16-bit
• 50 Hz Event Counter for Digital Input
• High/Low Alarm for Digital Output
• Built-in Dual Watchdog

  Application:​

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

I-7033D-G

3-ch RTD Input Module with LED Display

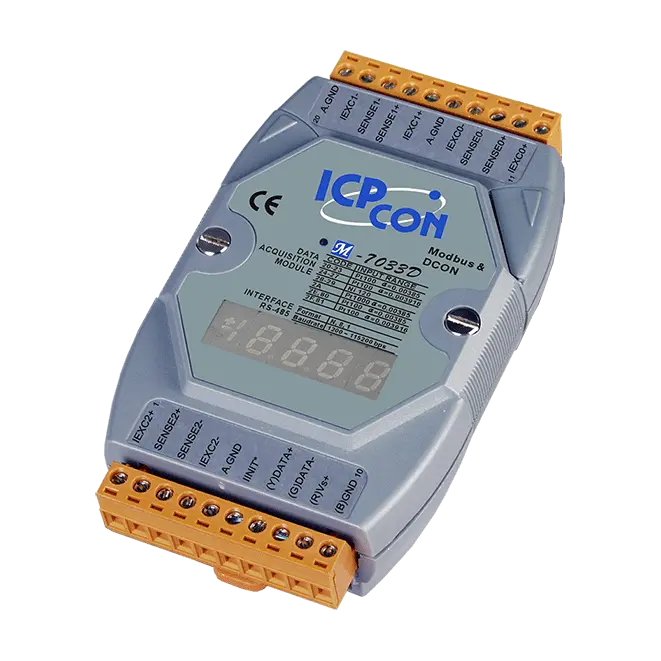

The I-7033 is a 3-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 type sensors. The module allows 2/3/4-wire RTD connections and features open wire detection. In addition, the I-7033 also includes 3000 VDC intra-module isolation, and supports lead resistance elimination for 3/4-wire connections. ​

• 3 RTD Inputs
• Lead Resistance Elimination for 3/4-wire Connections
• Open Wire Detection
• Built-in Dual Watchdog

  Application:​

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

M-7024-G

4-ch Analog output Module

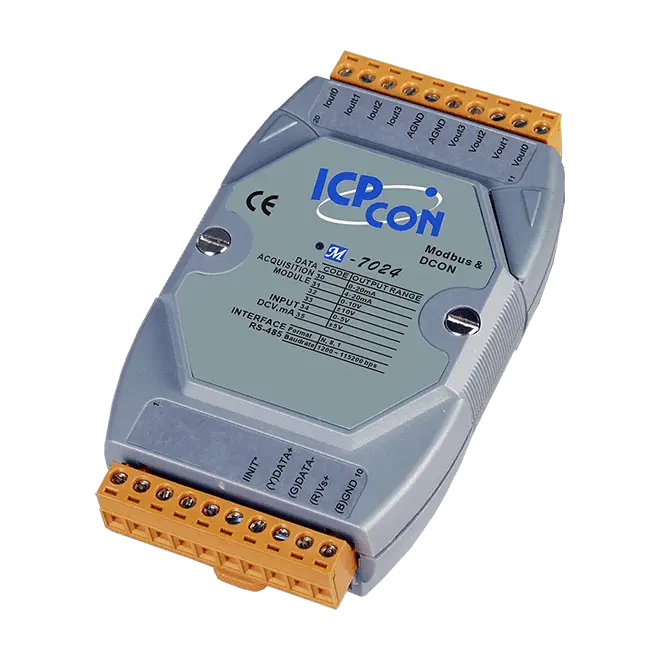

The M-7024 is a 14-bit, 4-channel analog output module that provides current and voltage outputs. The module features 3000 VDC intra-module isolation. The M-7024 supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as the I-7024.

• 4 Analog Outputs
• Software Selectable Current or Voltage Output
• Configurable Power-on Value and Safe Value Settings
• Programmable Output Slope
• Built-in Dual Watchdog

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.

  Application:​

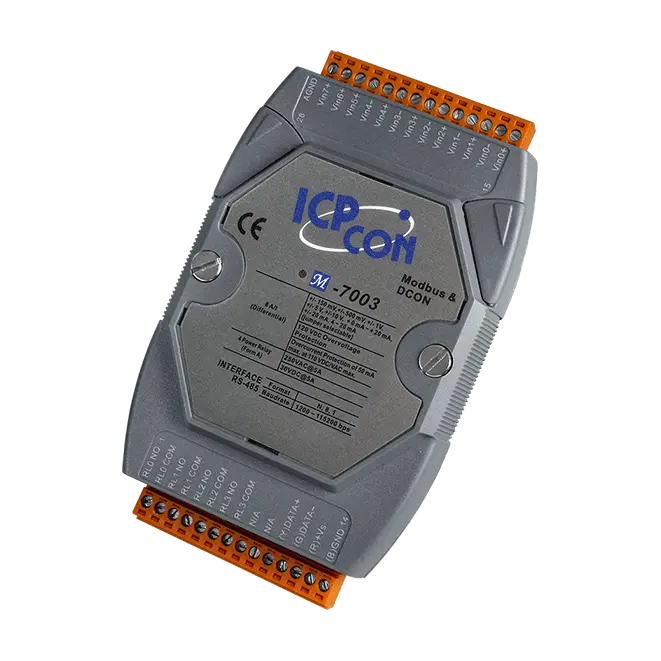

M-7003-G

8-ch Analog input & 4-ch Relay Module

  The M-7003 module features 16-bit resolution, 8-channel analog input, and 4-channel relay output module. All of its channels are Form A type relay module that provides programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 120 VDC high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of the M-7003 is changeable; there are fast mode and normal mode for your consideration. The M-7003 also has a qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

• Voltage and Current Inputs
• Relay Outputs
• High Resolution: 16-bit
• Photocoupler Isolation
• Built-in Dual Watchdog

  Application:​

Factory automation,machine automation,testing equipment,building automation,solar energy system,pollution monitoring system.
