Remote I/O Modules support a wide range of of field signals including current, voltage, thermistor, thermocouple, RTD, and strain gauge with many protocols and interfaces.

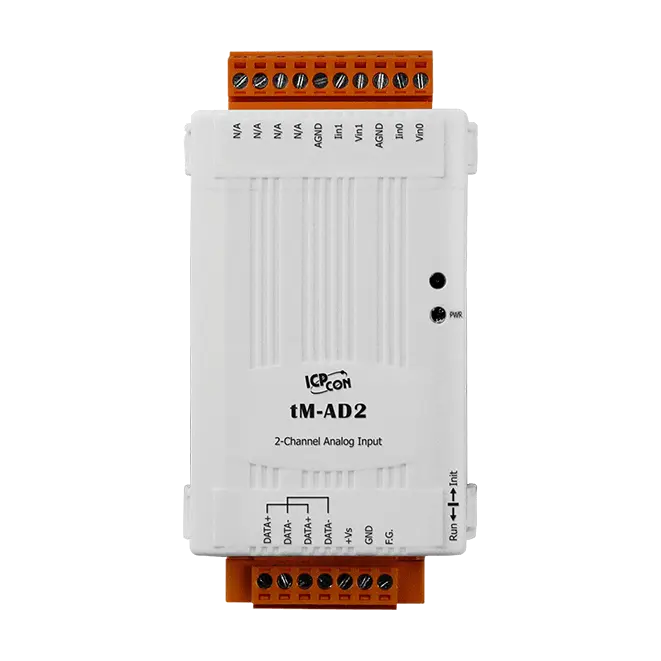

tM-AD2
2-channel Isolated Analog Input Module
The tM-AD2 is an analog input module that includes 2 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides high overvoltage protection of 120 VDC. The sampling rate of the tM-AD2 is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.
- 2-channel Single-ended Inputs
- Voltage Inputs and Current Inputs
- Adjustable Sampling Rate
- Dual Watchdog
Application:
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
tM-AD5/tM-AD5C
5-channel Isolated Voltage & Current Input Module
The tM-AD5 is an analog input module that includes 5 differential analog input channels and provides a programmable input range on all analog inputs.It provides high overvoltage protection of 120 VDC. The sampling rate of the tM-AD5 is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation
- 5-channel Differential Inputs
- Voltage Inputs / Current Inputs
- Adjustable Sampling Rate
- Dual Watchdog
Application:
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.

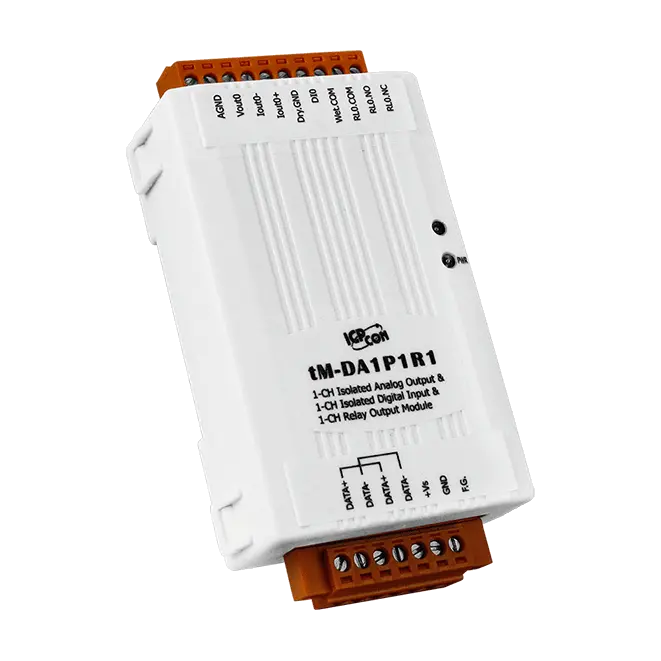

tM-DA1P1R1
1-channel AO, 1-channel DI and 1-channel Power Relay Module
The tM-DA1P1R1 is an RS-485 Interface module that offers 1 analog output channel, 1 digital input channel, and 1 relay output channel. Analog output resolution is 12-bit with an output range of 0~10V and 0~20mA. The Digital input channel is a dry contact type and provides a 16-bit counter function. The Relay output type is a Form C, and all I/O terminals provide 4 kV ESD protection and 3 kV intra-module isolation.
- Multifunction (1 AO, 1 DI and 1 DO)
- 1-channel Isolated Analog Output
- 1-channel Isolated Digital Input
- 1-channel Power Relay Output
- Configurable Power-on Value and Safe Value Settings
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
Application:

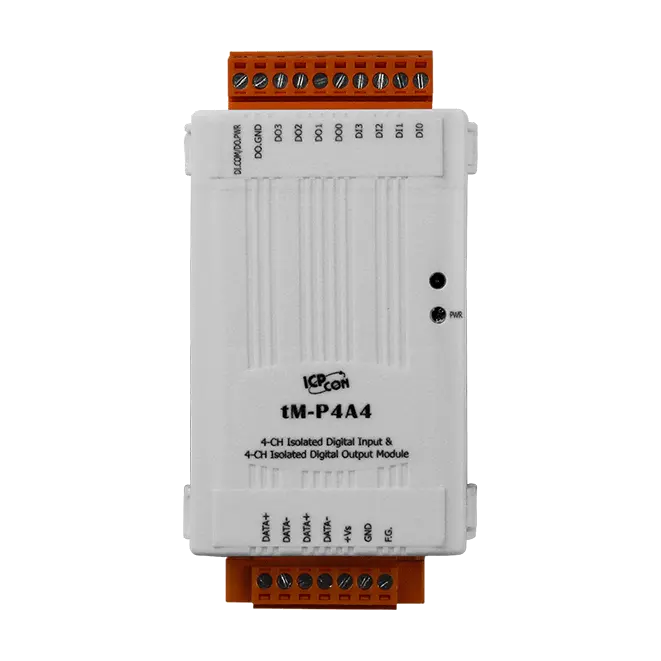

tM-P4A4
4-channel Isolated DI and 4-channel Isolated DO Module
The tM-P4A4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocoupler isolation. The tM-P4A4 supports source-type output with short circuit protection, while the input is sink-type. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
- 4-channel Sink-type Digital Inputs
- 4-channel Source-type Digital Outputs
- photocoupler Isolation
- All DI Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
Application:
tM-P4C4
4-channel Isolated DI and 4-channel Isolated DO Module
The tM-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocoupler isolation. The tM-P4C4 supports sink-type output with short circuit protection, while the input is source-type. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
- 4-channel Sink-type Digital Inputs
- 4-channel Source-type Digital Outputs
- photocoupler Isolation
- All DI Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
Application:

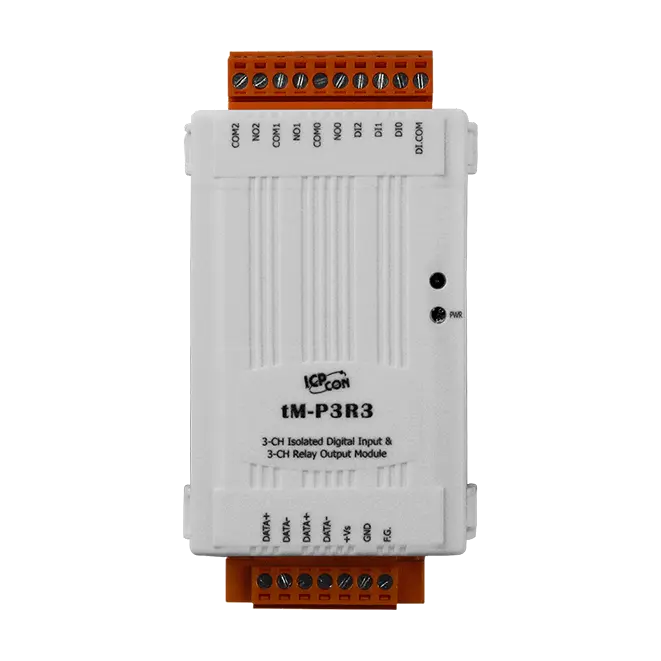

tM-P3R3
3-channel Isolation Digital Input and 3-channel Power Relay Module
The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are Form A-type relays, while the digital input channels can be configured as either sink- or source-type through wiring. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
.
- Wet Contact, Source- or Sink-type Digital Inputs
- Relay Outputs
- Photocoupler Isolation
- All DI Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
Factory automation, machine automation, testing equipment, building automation, solar energy system, pollution monitoring system.
