What Are Wireless IO Modules
Think of wireless IO modules as the bridge between your sensors, actuators, and control systems—just without all those cables. These devices collect data from the field (like temperature readings, pressure levels, or switch states) and transmit it wirelessly to your PLC, SCADA system, or cloud platform.
Instead of running conduit and pulling wire across your facility, you mount a module near your equipment, configure it, and you're basically done. It's that straightforward.
Wi-Fi Module-Wi-Fi IO Module support a wide range of field signals including current, voltage, thermistor, thermocouple, RTD, and strain gauge with many protocols and interfaces.
What we propose to our customers
Request for WiFi IO Module Quote contact us for sales & Services Request For Quote
01

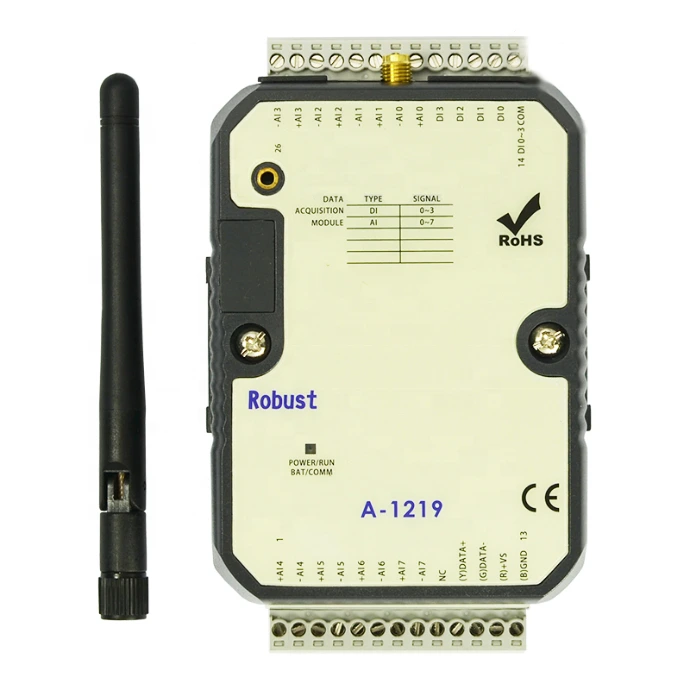

8AI,4DI Wi-Fi Remote Analog Acquisition I/O Module
03
USR-W610 1-port RS485 / RS232 to WiFi Converters Modbus With 1 RJ45 Ethernet Port RTU to Modbus TCP
02
4ai 2di 2ao 2do Wi-Fi Remote I/O Module with Modbus RTU
04

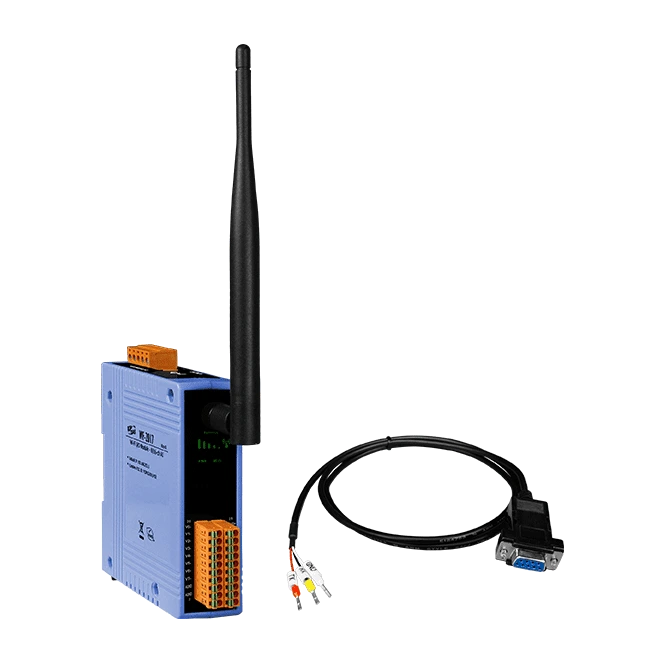

Wi-Fi I/O Module with 5-ch AI, 2-ch AO, 2-ch DI and 3-ch DO
Choosing the Right Wifi IO Module for Your Application

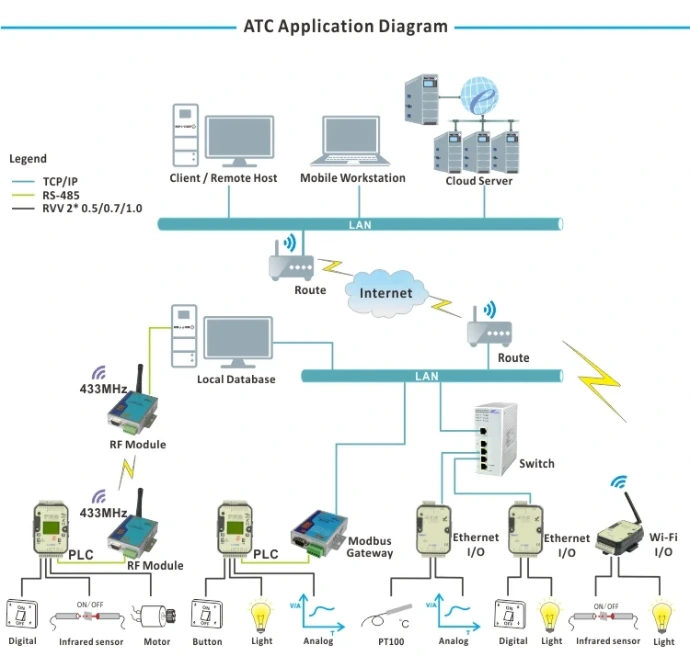

Modern WiFi IO modules with Ethernet connectivity bridge easily into existing automation networks. They show up as standard IP devices that your SCADA software, PLC, or HMI can poll using Modbus TCP, Ethernet/IP, or other industrial protocols.
The dual-band WiFi just handles the physical layer—getting data from the module to your network. Your control system doesn't care whether it came via 2.4GHz or 5GHz.
Smart Home Automation Projects
People are using WiFi relay modules to automate everything from lighting systems to HVAC controls. You can create schedules, trigger actions based on sensor readings, or control devices with voice commands through integration with platforms like Home Assistant or Google Home.
Industrial Monitoring and Control
Factories and warehouses deploy remote IO modules over WiFi to monitor production lines, track environmental conditions, and control machinery without running expensive cable infrastructure. These wireless control modules offer real-time data logging and instant alerts when issues arise.
Greenhouse and Agriculture Automation
Growers use WiFi connected IO devices to manage irrigation systems, monitor soil moisture, control ventilation, and adjust lighting – all accessible remotely through a simple web dashboard.
Security and Access Control
From automated gate controllers to smart door locks, WiFi digital input output modules provide the connectivity needed for modern security systems that you can monitor and control from anywhere.
Key Features to Look For
Number of channels
How many inputs and outputs do you need? Common configurations include 4-channel, 8-channel, or 16-channel WiFi IO modules
Input types
Digital inputs for switches and sensors, analog inputs for variable readings like temperature or voltage
Power requirements
Does it need external power, or can it run on batteries?
Output capabilities
Relay outputs for high-power devices, digital outputs for LEDs and logic circuits
Protocols supported
Look for modules supporting MQTT, HTTP API, Modbus TCP, or other standard communication protocols
The Future of WiFi IO Technology
We're seeing exciting developments in this space – lower power consumption allowing for battery-operated wireless IO modules, improved range with WiFi 6 support, and better integration with AI and machine learning for predictive automation.
Whether you're a hobbyist experimenting with home automation or an engineer deploying industrial controls, WiFi input output modules offer an accessible and cost-effective way to bring intelligence and connectivity to your projects. The key is choosing the right module for your specific needs and taking the time to set it up properly.
About our Product line
A-1212
4ai 2di 2ao 2do Wi-Fi Remote I/O Module with Modbus RTU

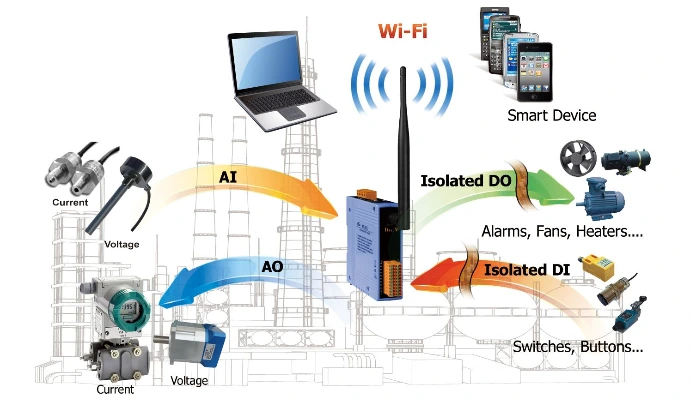

The WF-2026 is a multifunction module with Wi-Fi interface that includes 4 analog input channels, 2 analog output channels, 2 digital input
channels and 2 digital output channels. It provides a programmable input
range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10
V, +/-20 mA or 0 ~ +20 mA) and output range on all analog output (12-bit
at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA). Each analog input and
output channel can be configured for an individual range and provides a
high overvoltage protection of 240 Vrms. Analog Input and output can be
jumper selectable as either voltage or current. With the popularity of
802.11 network infrastructure, the A-1212 makes an easy way to
incorporate wireless connectivity into monitoring and control systems.
The A-1212 also supports Modbus/TCP and UDP protocols and the network
encryption configuration, which makes perfect integration to SCADA
software and offer easy and safe access for users from anytime and
anywhere.
-
Multifunction (4-AI, 2-AO, 2-DI and 2-DO)
-
Individual Channel Configuration
- Jumper Selectable Voltage or Current Input/Output
-
Support Modbus/TCP and UDP protocols
-
Support DHCP network configuration
-
Overload and Short Circuit Protection for Digital Output
-
4 kV ESD Protection
- Built-in Watchdog

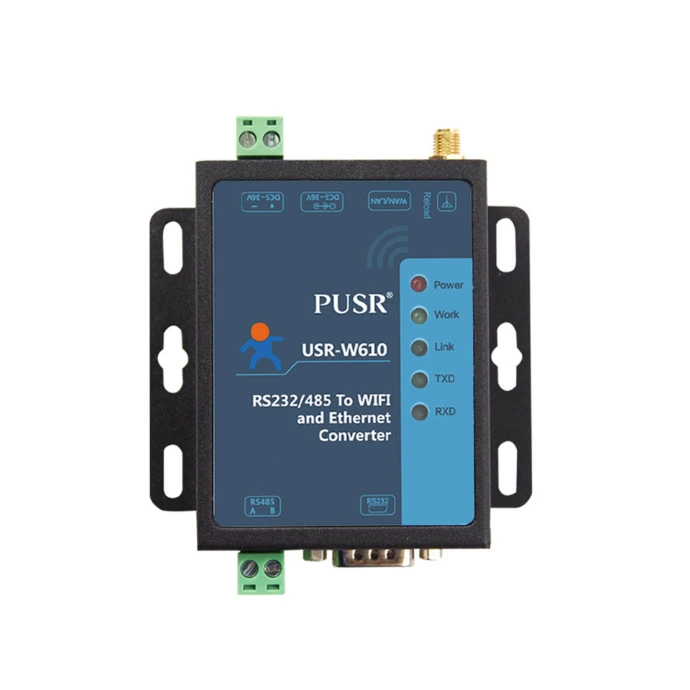

USR-W610
RS232/485 to WIFI and Ethernet converter

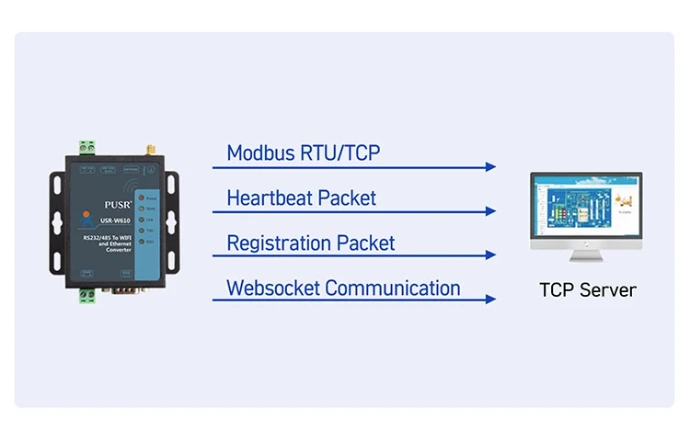

The USR-W610 is a device that can realize data communication between serial port and Ethernet/Wi-Fi. Through this device, the communication between the on-site serial device and the remote SCADA system can be realized. It has a 232 serial port and a 485 serial port, but the two serial ports cannot be used simultaneously. It integrates a wealth of network protocols like MQTT, TCP, UDP etc. and supports a variety of networking methods, suitable for various scenario
- Support Relay type digital outputs
- Support sink/source type digital inputs
- Compatible with IEEE 802.11b/g standards
- Support infrastructure and ad hoc modes for wireless networks
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support pair connection mode
- Support DO power on value & safe value Mechanism
- Built-in Watchdog
Application:
MDC-211WF
Wi-Fi Modbus Data Concentrator
MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.
- Compatible with IEEE 802.11 a/b/g/n standards
- Support Infrastructure and Limit-AP mode
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Support Ethernet, RS-232/485 and Wi-Fi interfaces
- Support Web-based UI Operations
- Support the Modbus TCP/RTU protocol
- Support 240 Modbus Polling Commands
- Supports 9600 Modbus Registers for DI/DO/AI/AO
Application:
Frequently asked questions
Here are some common questions about our company.
A WiFi I/O module is used to remotely monitor and control inputs and outputs over a wireless network. It connects sensors, relays, and industrial equipment to cloud platforms or mobile apps for real-time data access. WiFi I/O modules are widely used in IoT systems, industrial automation, smart buildings, and remote monitoring application
To set up a WiFi input output (I/O) module, power the device and connect it to your wireless network using the built-in app or web interface. Configure the digital or analog inputs and outputs to connect sensors, relays, or equipment, then test communication remotely. This simple setup enables remote monitoring, device control, and IoT automation for industrial and smart applications.
You can buy an affordable WiFi I/O module for automation from GATEWAYIO, a trusted provider of industrial connectivity solutions. GATEWAYIO offers cost-effective WiFi IO modules designed for industrial automation, IoT, and remote monitoring applications. Their solutions are easy to integrate, reliable, and ideal for small to medium-scale automation projects.
