What Is an Industrial IoT Gateway

An industrial IoT gateway helps with edge computing and connects data to the cloud, bridging the gap between old and new machines on the shop floor. Usually set up on-site, it comes with flexible I/O and several COM ports, and is used to gather, process, and standardize data from sensors and PLCs, allowing for safe remote control. These gateways are also called data loggers, data collectors, and protocol conversion gateways.

Industrial IoT Gateways: The Smart Way to Connect Your Factory Equipment



What we propose to our customers   Request a Quote

Designed for tough environments, this industrial-grade device includes IoT expansion slots for easy hardware upgrades. It features powerful CPUs and ample memory, making it perfect for developing custom applications.

IoT Controllers specializes in providing user-friendly, secure, and reliable IoT solutions for a multitude of scenarios. Connect, monitor, visualize, analyze, and measure anything whenever you need. Our solutions span across Asset Management, Smart Buildings, Agriculture, Supply Chain, Healthcare, and Smart Cities.

01

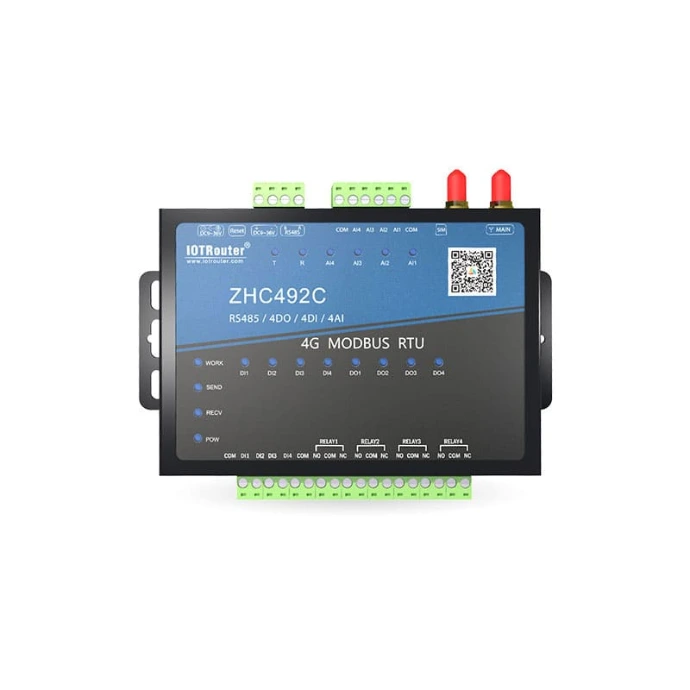

Modbus Rs485 to SMS/GPRS/4G/WiFi RTU/DTU IP Module Controller Data Logger Gateway MQTT Protocol

02

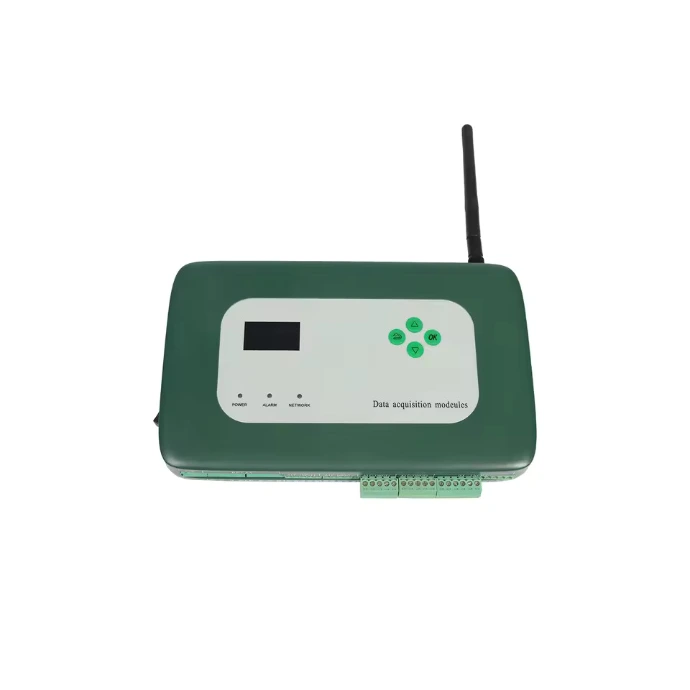

Data Collection Module WiFi RTU Iiot Gateway for Smart Agriculture

03

This is a small title related to the current image

04

This is a small title related to the current image

Reliable connectivity, everywhere


Industrial IoT gateway devices typically come with wired and wireless connectivity options, enabling them to manage data from several sources and maintain a stable internet connection in a variety of unstable conditions. Every portion of the network connectivity is built with customization.

iot connection

Device Connection
Analog Input & output, Digital input & output
Ethernet/IP


iot cloud integration

Cloud Integration
Wi-Fi, Ethernet, Cellular


iot fieldbus connectivity

Fieldbus Interfaces
RS485, RS232, I/O, WAN/LAN and USB




Key Features of Industrial IIOT Gateways

1

Seamless Protocol Conversion

Your facility probably uses multiple industrial communication protocols like Modbus RTU, Modbus TCP, OPC UA, Profinet, EtherNet/IP, and MQTT. Our gateways handle protocol translation effortlessly, so your equipment compatibility issues become a thing of the past.

2

Edge Processing and Analytics

Instead of sending raw data streams constantly, our edge gateways process information locally. This means faster response times, reduced bandwidth costs, and the ability to make real-time decisions even if your internet connection drops.

3

Industrial-Grade Reliability

When we say ruggedized IoT gateway, we mean it. These devices are built to withstand harsh industrial environments with wide temperature ranges, electromagnetic interference, vibration, and dust. They meet industrial certifications and IP ratings you can count on.

Real-World Industrial Applications of IOT Gateways

Condition monitoring and maintenance

Connect your critical assets to monitor vibration, temperature, pressure, and other parameters. Detect anomalies before they cause equipment failure and schedule maintenance during planned downtime instead of dealing with costly unplanned outages..

Energy Management and Optimization

Track power consumption across your facility in real-time. Identify energy-intensive processes, optimize production schedules, and reduce operational costs while meeting sustainability goals.

Remote Equipment Monitoring

Manage distributed assets across multiple sites from a centralized dashboard. Perfect for companies with facilities in different locations who need unified visibility and control.

About our Product line

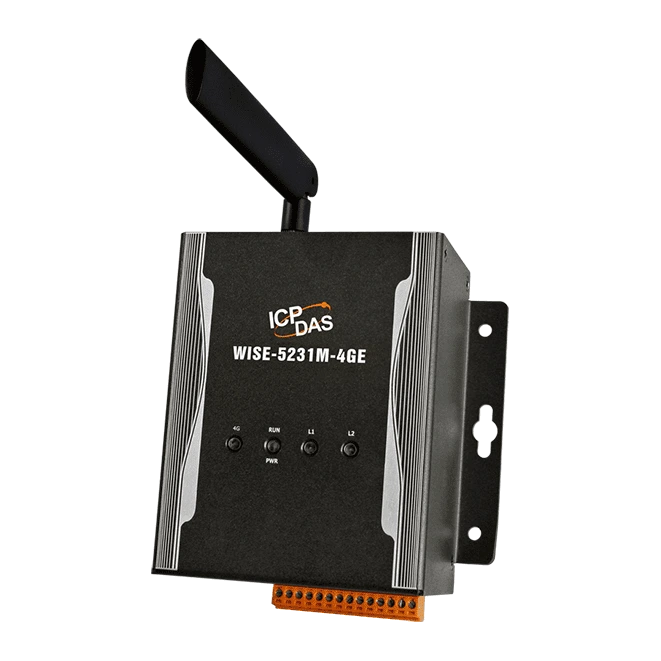

WISE 5231

WISE-5231-4GE

IIoT Edge Controller

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required.Built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.  WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform

  • Runs on browsers, no extra software tool is required
  • No more programming, Web pages provided for control logic editing
  • Support DCON or Modbus RTU Slave devices (Up to 32)
  • SSL/TLS Email sending function supported
  • Timer and Schedule functions supported
  • Data logger and data files send back function supported
  • Active I/O sending function for real-time data transfer
  • CGI Command sending and receiving function supported ip camera & Network devices
  • Support 4G/3G wireless data communication

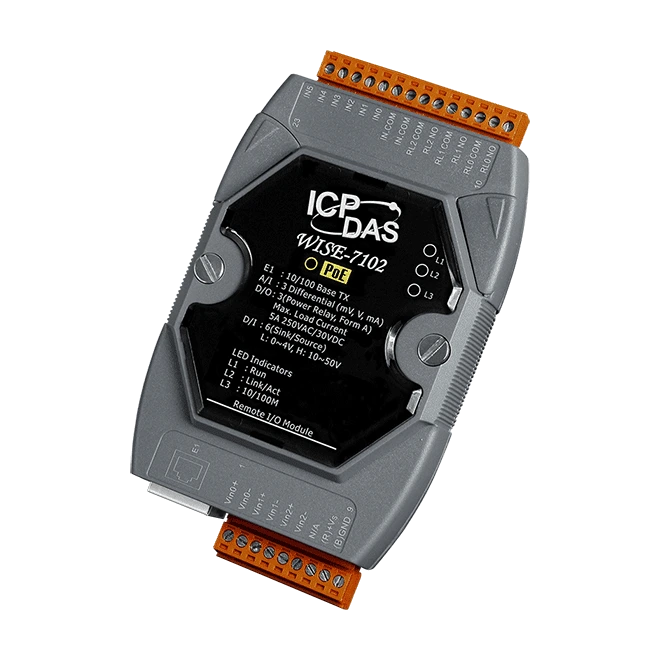

WISE-7102

Intelligent I/O Module with 3-ch AI, 6-ch DI, 3-ch Power Relay

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7102 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 3-channels analog inputs, 6-channels digital inputs and 3-channels Power Relay outputs. Each analog input channel provides 240 Vrms high over voltage protection.

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 3-channels; DO: 3-channels Power Relay; DI: 6-channels).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).

eefef

Intelligent I/O Module with 8-ch AI, 4-ch DO

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7117 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-bit, 8-channel differential analog inputs and 4-channel digital ouputs. Each analog channel is allowed to configure an individual range and has 240Vrms high over voltage protection. Jumper selectable for voltage or current input. .

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 8-channels; DO: 4-channels).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).

wswd

Intelligent I/O Module with 6-ch AI, 2-ch AO, 2-ch DI, 2-ch DO

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This multi-function module WISE-7126 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. Each analog input channel provides 240 Vrms high over voltage protection.

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (AI: 6-channels; AO: 2-channels; DI: 2-channels; DO: 2-channels).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).

ssdf

Intelligent I/O Module with 16-ch DI

WiSE function as a control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending function. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration.

This module WISE-7151 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 16-channel isolated wet contact digital inputs. Each digital input channel supports counter input.

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (DI: 16-channels).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).
